Electric Motor NSK Type Brushless Nano

Dental Brushless Micromotor Fiber Optic Low Speed Handpiece Increasing Electric Motor E type Contra Angle Dentistry Equipment

Features:
1.Germany's top micro bearings are used to ensure the durability of the handpiece. The bearings enable the handpiece to perform well in both noise and vibration
2. Simple operating system,Connect the dental unit to the motor with 2/4 holes tubing.
3. Low noise design, can relieve patients' fear and increase their experience satisfaction.
4,Patented dustproof mechanism cartridge, effectively prevent impurities, longer service life.
5,According to the different treatments and different handpiece, the speed can be adjusted from 100-200,000rpm/min.

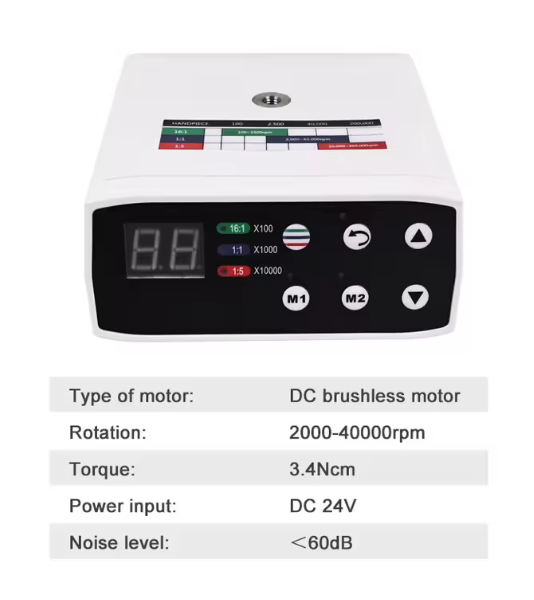

Specifications:
1.Motor type:Brushless Electric Micromotor
2.Rotation speed:2000-40000rpm
3.Torque:3.4Ncm
4.Power input :DC24V
5.Motor size:22x171mm
6.Motor weight:71g
7.Noise<60dB
8.The light source :LED(whitelight)
9.Controller size:L150xW128xH55mm
10.The total weight:1250g

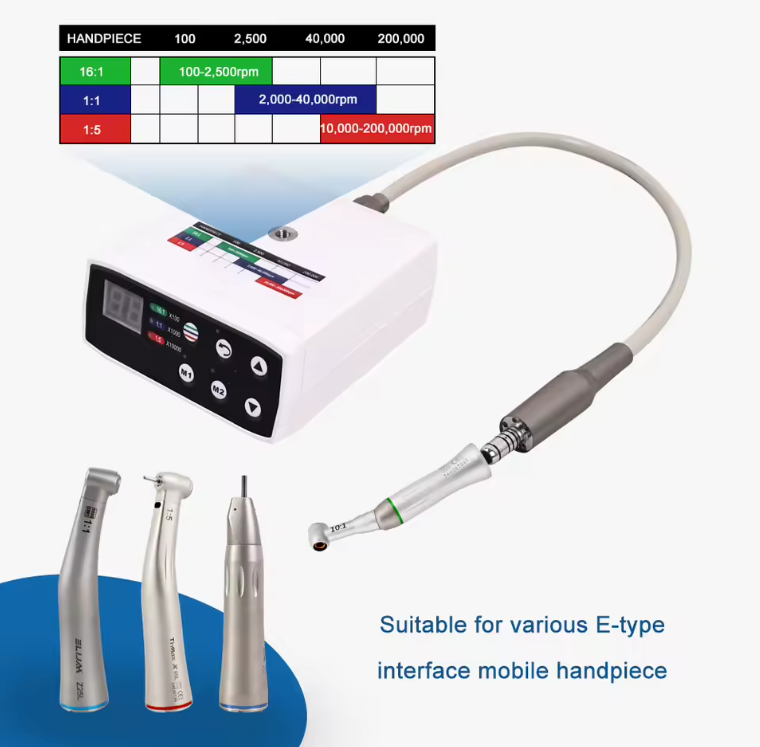

11.Ratio of contra angle Speed reduction Speed Range(RPM)
